versoclave

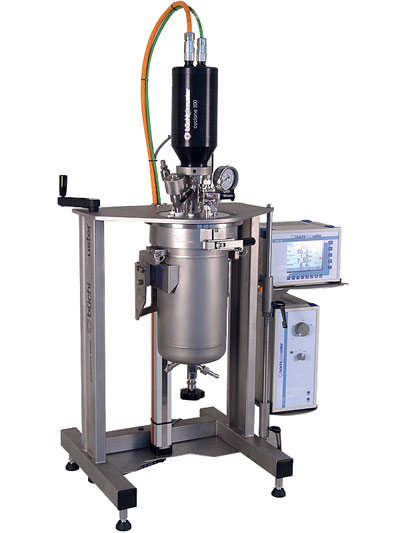

Laboratory pressure reactor system
Reactor volume: 0.5 – 5.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: -20°C to +250 °C
Material: stainless steel, Hastelloy
This multipurpose pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.
The stainless steel or Hastelloy reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.
The modular setup of the versoclave system allows changing or upgrading for new tasks at any time.
With fast action closure and Reactor lift it becomes very easy to operate also heavy metal pressure vessels. A wide range of accessories for feeding of liquids / solids / gas and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.
Standard package
- Stand with open access from all sides
- Pressure vessel in steel / Hastelloy with suitable stirrer shaft, stirrer, baffle, Pt-100 and bottom valve
- Cover plate with 7 openings and standard setup:
- Swagelok fittings with bursting disc, manometer and 2 valves
- Stirrer drive «cyclone 300» with integrated high torque magnetic coupling, incl. controller «cc300»
- Tools and spare parts
Standard options
- Reactor lifting / lowering device
- Safety Fast Action Closure for vessel
- ATEX stirrer drive
- Metal-free (inert version) with ceramic stirrer drive
- Electric heating / water cooling
- Measure and control systems
- Wide range of accessories
- 200 bar version
- Hydrogenation reactor
- Polymerization reactor
- Synthesis reactor
- Catalyst testing / evaluation
- Catalytic reactor
- Crystallization
- Chemical research
- Petrochemical research
- Corrosion measurement
- Upstream research
- Biomass research
- Biopolymer research
- Biorefinery research
- Biofuels research
- Zeolite synthesis
- Nanoparticle synthesis
- Corrosion testing autoclave
