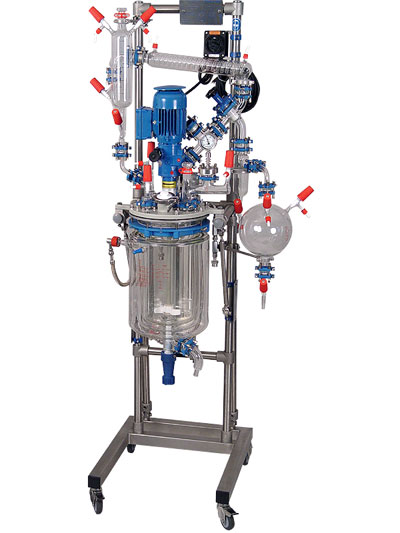

miniPilot

Multi-Purpose mini-plant pilot reactor

Glass reactor: 5, 10, 15 liter
Pressure: -1.0 (FV) to +1.0 bar
Temperature: -60 °C (-90 °C) to +200 °C
Material: Borosilicate glass 3.3, PTFE, PFA, PEEK

With the miniPilot product family (Reactor, nutsch filter, scrubber) we offer mini-plants for chemical process development, scale up, process simulation and kilo-scale production.

The Reactor’s explosion proof design (ATEX) and inert materials allow safe processing of solvents and acids in a completely sealed reaction vessel. The compact standard reactor setup can easily be modified, interchangeable reaction vessels of 5, 10 and 15 liters including interchangeable stirrers are available. The reaction vessel is installed on a lifting / lowering device, for easy opening and cleaning. The distillation glass overhead is built with flexible ball-socket joints for multiple chemical reactions under full vacuum.

We produce complete solutions for chemical processing: Reactor systems including accessories like sampling devices, pH probes, rectification columns with structured packing, process monitoring and control as well as integration of auxiliary equipment such as temperature control units, nutsch filters / dryers, scrubbers or mixing vessels.




Standard package

  • 5, 10, 15 liters jacketed glass reactor, interchangeable
  • Baffle with Pt100 temperature sensor
  • Continuous adjustable agitator speed, 0-600 rpm
  • Dry running mechanical seal
  • Compact stainless steel frame, table or floor model, mobile
  • ATEX Zone 1 (0) / CE / cGMP
  • CIP capable
  • FDA conform, highly corrosion resistant
  • Complete documentation

.

Standard options

  • Reactor lift for easy reactor opening, cleaning, stirrer exchange
  • 3-wall reactor vessel for -90 °C chemistry
  • Glass distillation overhead
  • Sampling system
  • Probes for pH, others
  • CiP spray nozzle
  • IQ / OQ / PQ
