limbo li

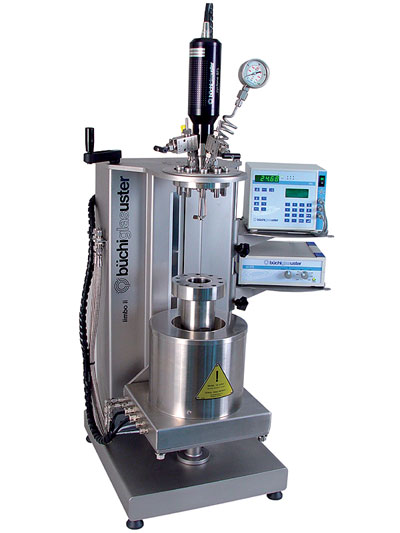

Laboratory high pressure reactor system

Reactor volume: 100 – 450 ml
Pressure: 350 bar
Temperature: -20 °C to + 350 °C (500 °C)
Material: stainless steel, Hastelloy

This high pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.

The stainless steel or Hastelloy reactors ensure high resistance against acids. The magnetic drive ensures efficient mixing and stirring of the process media as well as excellent heat transfer.

The system is equipped with a 2 – step lowering device for reaction vessel and temperature control block (electric heating / water cooling).

The modular setup of the limbo li system allows changing or upgrading for new tasks at any time.

A wide range of accessories is available – talk to us to define the right setup for your specific need.












Standard package

  • Stand with  2-step lift for reactor and heating block
  • Electric heating with integrated water cooling system
  • Programmable PID temperature controller btc
  • Pressure vessel (Type  3) with suitable stirrer shaft, stirrer and Pt-100
  • Cover plate with 5 openings and standard setup:
  • Swagelok fittings with bursting disc, manometer and 2 valves
  • Stirrer drive «cyclone 075» with integrated magnetic coupling, incl. controller «cc075»
  • Tools and spare parts

Standard Options

  • Measure and control systems
  • Wide range of accessories



  • Hydrogenation reactor
  • Catalyst testing / evaluation
  • Catalytic reactor
  • Materials testing
  • Chemical research
  • Super-Critical reactions / extractions
  • Corrosion measurement
  • Hydrogen sulfide (H₂S) scavenger testing
  • Petrochemical research
  • Biomass research
  • Biorefinery research
  • Biomass-to-liquids (BTL) research
  • Biofuels research
  • Thermal pressure hydrolysis (TPH)
  • Corrosion testing autoclave
